IKV: Research for Practical ApplicationShort-Fiber-Reinforced Thermoplastics: Targeted Analysis of Fatigue Behavior and Improvement of Service Life
A guest post by
Prof. Dr.-Ing. Christian Hopmann, Director of the IKV Institute and Chair of Plastics Processing; Roman Schmohl, M.Sc., Short-Fiber-Reinforced Thermoplastics; Jonas Regel, M.Sc., Partially Cross-Linked Epoxy Resin Systems, and Marie Hadenfeldt, M.Sc., Extrusion
| Translated by AI
6 min Reading Time
Short-fiber-reinforced thermoplastics are increasingly being used in high-stress applications—such as in automotive and equipment manufacturing. However, the inhomogeneous fiber orientation makes it difficult to reliably predict fatigue behavior. Researchers at the IKV demonstrate how targeted specimen fabrication, experimental analyses, and micromechanical simulations can lead to a better understanding of damage mechanisms and the development of more precise service life models.

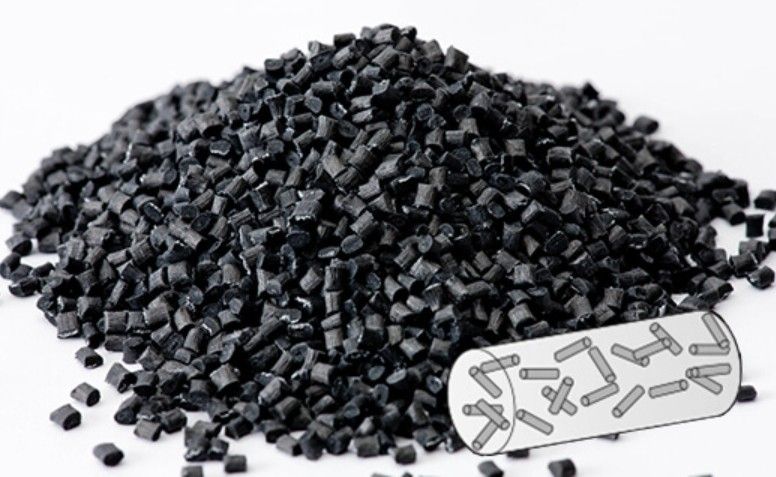

However, a method developed at the IKV makes it possible to produce test specimens with homogeneous, highly oriented fibers, thereby allowing the damage mechanisms to be studied without any interactions.
(Bild: Toray)
Understanding the Fatigue Behavior of Short-Fiber-Reinforced Thermoplastics
Short-fiber-reinforced thermoplastics are increasingly being used in applications subject to fatigue loads, such as in automotive and equipment manufacturing. These materials are manufactured using injection molding, a process that results in a process-dependent distribution of fiber orientation across the wall thickness. This inhomogeneous anisotropy complicates damage analysis, as layer interactions cause a dependence on the fiber distribution. However, a method developed at the IKV makes it possible to produce test specimens with homogeneous, highly oriented fibers, thereby allowing for the investigation of damage mechanisms free from such interactions.
To investigate the fatigue behavior of short-glass-fiber-reinforced thermoplastics, experimental characterization, mechanical testing, and micromechanical simulation were combined in such a way that microstructure, stress, and model parameters for material modeling could be consistently mapped to one another. The investigations were conducted under tensile threshold loading, such that the material response is influenced not only by cyclic damage accumulation but also by time-dependent viscoelastic or viscoplastic effects, thereby representing a practical load case for structural applications. Creep during the loading phases thus superimposes on the cyclic damage and influences the micromechanical stress and strain distribution, and consequently also the damage development through crack initiation and growth. Test specimens based on polybutylene terephthalate (PBT) with 10, 20, and 30 wt% glass fibers were investigated.
A key methodological component was the use of test specimens with uniform fiber orientation to avoid the superposition of multiple orientation states across the thickness that is typical of conventionally injection-molded components. The microstructure was imaged using µCT and quantitatively described using fiber orientation tensors. This made it possible to conduct material tests at the mesoscale on test specimens with a defined orientation state, without interactions between different orientations masking the damage mechanisms.
Fiber ends were identified as the preferred initiation sites for damage, which is consistent with local stress concentrations and the clustering of microdamage in their vicinity. In contrast, fiber crossings that do not involve fiber ends do not consistently play a critical role, so their significance depends more on the local configuration. A qualitative comparison with the micromechanical simulations supports this interpretation. The phase-field fracture approach reproduces the location of typical damage localization as well as characteristic crack paths in the matrix, thereby enabling a mechanically grounded classification of the observed damage patterns.
This allows for a more precise identification of the key mechanisms involved in damage initiation and subsequent damage progression under tensile cyclic loading. The results provide a starting point for systematically quantifying the influence of defined fiber orientations and microstructural features in future studies and for incorporating them into microstructure-based service life models.
This work was supported by the German Research Foundation (DFG) as part of project HO 4776/82-1.
Thermoforming of Partially Cross-Linked Epoxy Resin Systems
The plastic formability of partially cross-linked thermosets opens up new possibilities for post-forming of fiber-reinforced composite components following a primary forming process. However, these possibilities have hardly been systematically exploited to date. In particular, there is no reliable process window that describes the permissible degree of deformation as a function of temperature, degree of cross-linking, and fiber content. In a new research project, the IKV therefore aims to identify the conditions under which partially cross-linked molding compounds can be hot-formed reproducibly and without structural damage, and to derive criteria for their industrial application. To this end, a process chain consisting of initial shaping, storage, the forming process, and a final cross-linking phase will be incorporated.
